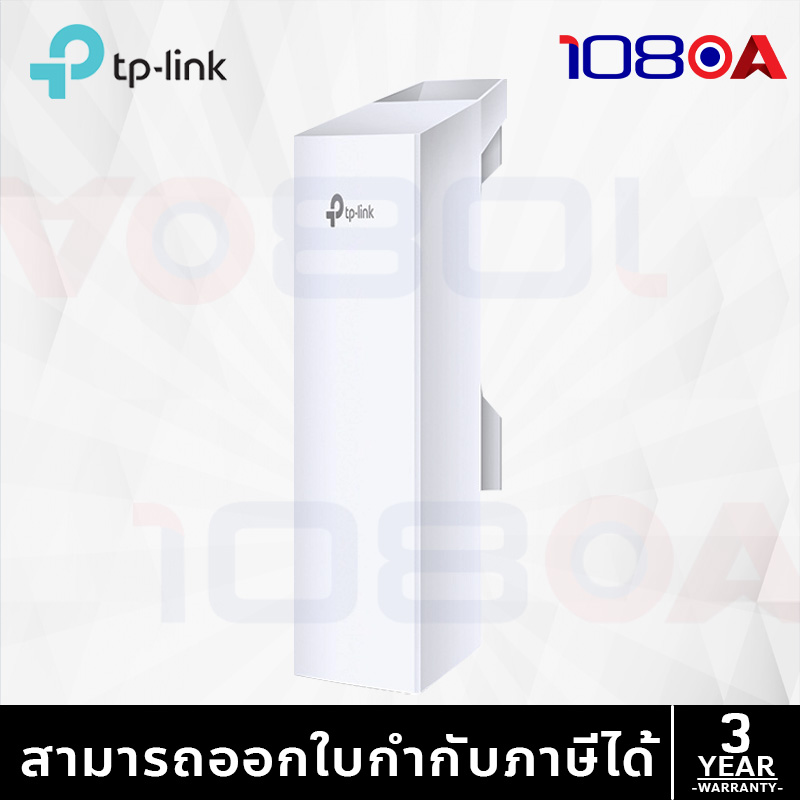

CPE510
2,400 รวมภาษี บาท
CPE510
- Built-in 13dBi 2×2 dual-polarized directional MIMO antenna
- Adjustable transmission power from 0 to 23dBm/200mw
- System-level optimizations for more than 15km long range wireless transmission
- TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
- Centralized Management System – Pharos Control
- AP / Client / AP Router / AP Client Router (WISP) operation modes
- Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
Description
CPE510
| Processor | Qualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc |
| Memory | 64MB DDR2 RAM, 8MB Flash |
| Interface | 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) |
| 1 Grounding Terminal | |
| 1 Reset Button | |
| Power Supply | Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) |
| Voltage range: 16-27VDC | |
| Max. Power Consumption | 9.8 Watts Max |
| Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. |
|
| Dimensions ( W x D x H ) | 224 x 79 x 60 mm |
| Antenna | Built-in 13dBi 2×2 Dual-polarized Directional Antenna |
| Beam Width: 45° (H-Plane) / 45° (E-Plane) | |
| Note: For more details, please refer to datasheet | |
| Protection | 15KV ESD Protection |
| 6KV Lightning Protection | |
| Enclosure | Outdoor ASA stabilized plastic material |
| IPX5 waterproof Certification |
