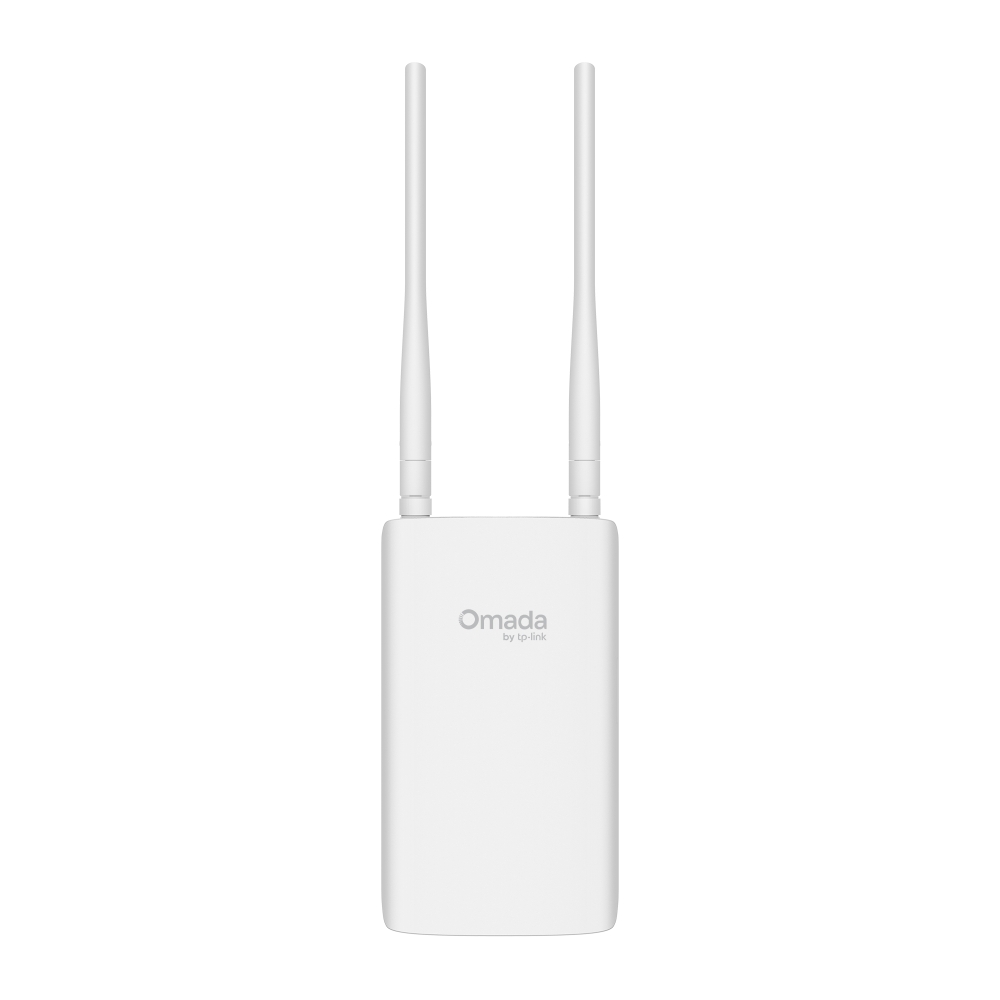

EAP603-Outdoor
3,300 รวมภาษี บาท
EAP603-Outdoor
- Seamless 1.8Gbps Wi-Fi 6 Speeds: 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz.
-
Dual-Band Omnidirectional Coverage: Up to 300 m (984 ft) long-range coverage.
-
PoE+ Powered: Supports both 802.3at PoE and Passive PoE (adapter included).
-
Ideal for Outdoor Environments: IP65 weatherproof, 6 kV lightning protection, and a reliable operating range of -40 °C to +70 °C.
-
Easy and Quick Setup: Wall/pole mounting; Omada SDN for one-click setup
-
Advanced Features: Omada Mesh, Seamless Roaming, and Centralized Cloud Management.
Description
EAP603-Outdoor
| Interface | • 1× 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE in |
| • 1× Grounding Termina | |
| Button | 1× Reset button: Press the button for longer than 5 seconds to make the device restore to factory settings. |
| Power Supply | Input: 802.3at PoE+: 42.5 – 57 V, 0.36A |
| Max. Power Consumption | • 802.3at (PoE+): 15.8w, 2.4GHz radio 2×2, 5GHz radio 2×2, wired link rate can be up |
| to 1 Gbps, etc. | |
| • Idle mode: 4.8W(PoE) | |
| Dimensions ( W x D x H ) | • Main Unit: 230 × 207.5 × 69.7 mm (9.06 × 8.17 × 2.74 in.) |
| • Shipping Unit: 324 × 104 × 245 mm (12.76 × 4.09 × 9.65 in.) | |
| Antenna | Wi-Fi |
| • 2.4 GHz: 2 × 4 dBi (peak gain), external omnidirectional antennas | |
| • 5 GHz: 2 × 5 dBi (peak gain), external omnidirectional antennas | |
| *Note: The gains above are the single-antenna peak gains. | |
| IoT | |
| • Bluetooth: 1 × 4 dBi (peak gain), internal omnidirectional | |
| antennas | |
| Bluetooth | Yes |
| Weatherproof Enclosure | IP66 for Wall Mount |
| IP65 for Pole Mount | |
| Mounting | • Pole Mount (Kits included) |
| • Wall Mount (Kits included) |
-
