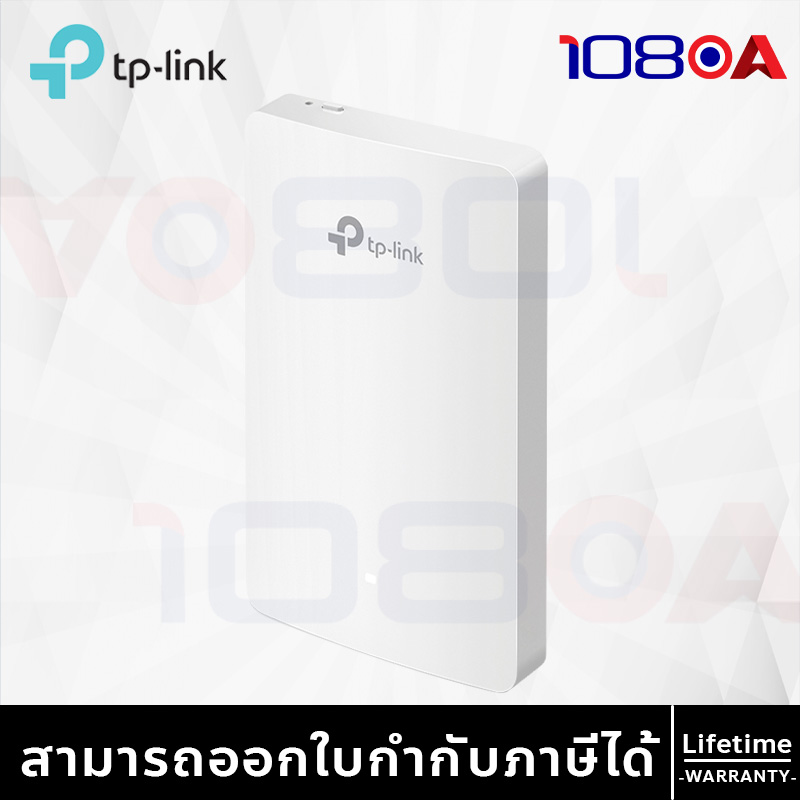

EAP615-WALL

Call

EAP615-WALL

  • Superior WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
  • High-Performance Connectivity: Guarantee higher network efficiency and lower latency.
  • Four Gigabit Ports: 4 Gigabit Ethernet ports (1× uplink + 3× downlink), with one downlink port supporting PoE pass-through to provide power for wired device.
  • Centralized Management: Integrates into Omada SDN for cloud access and remote management.
  • Secure Guest Network: Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies.
  • Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.

Description

EAP615-WALL

Interface • Uplink: 1× 10/100/1000 Mbps Ethernet Port
• Downlink: 3× 10/100/1000 Mbps Ethernet Ports
(One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input.
The maximum power output for POE pass-through is 13 W (EU version) or
12 W (US version), based on laboratory testing.)
Physical Security Lock Yes
Button Reset
Power Supply 802.3af/at PoE
Max. Power Consumption • EU: 10W (802.3at PoE, PoE Out off)
• US: 11.5W (802.3at PoE, PoE Out off)
Dimensions ( W x D x H ) 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)
Antenna 2 Dual-Band Antennas
• 2.4 GHz: 2× 3 dBi
• 5 GHz: 2× 4 dBi
Mounting Wall Plate Mounting
