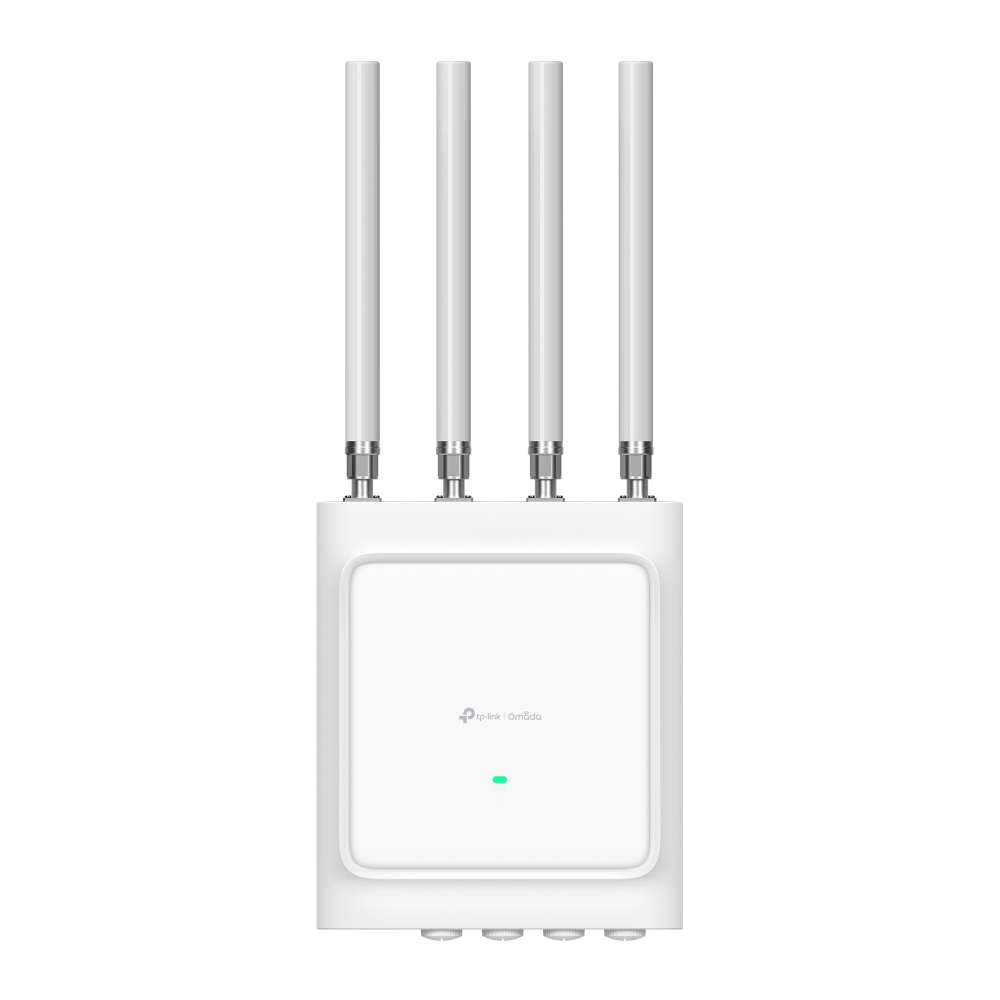

EAP668-Outdoor HD

Ultra-Fast 3.6 Gbps Wi-Fi 6 Speeds: 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz.
High-Density Connectivity: Supports up to 1,024 devices.
Multiple Ports for Flexible Network Solutions: 1× 10G SFP+ slot, 1× 2.5G PoE-In port, and 1× Gigabit PoE-Out port.
PoE+/PoE++ Powered and PoE+ Out: Supports 802.3at/bt PoE input and 802.3at PoE output.
Ideal for Outdoor Environments: IP68-rated weatherproof enclosure, 6 kV lightning protection, and a reliable operating range of -40 °C to +70 °C.
Advanced Features: Omada Mesh, Seamless Roaming, Bluetooth, and Centralized Cloud Management.

Description

Interface	1× 2.5G Ethernet Port + 1× Gigabit Ethernet Port + 1× 10G SFP+
Button	Reset
Power Supply	802.3at/bt PoE
Max. Power Consumption	802.3bt:
	• EU: 20.2W (bt type3: af PSE out; bt type4: at PSE out)
	• US: 25.4W (bt type3: af PSE out; bt type4: at PSE out);
	802.3at:
	• EU: 20.2W (PSE disabled)
	• US: 25.4W (PSE disabled)
	Note: PoE out power not included. The PoE-out feature requires 802.3bt PoE input.
Dimensions ( W x D x H )	9.5 × 3.2 × 12.3 in (240 × 80 × 312 mm) (excluding antennas, waterproofing kit, and mounting kit)
Antenna	4× External Dual-Band Omni Antennas
	• 2.4 GHz: 6.0 dBi
	• 5 GHz: 6.0 dBi
Bluetooth	Yes
Weatherproof Enclosure	IP68
Mounting	Wall/pole mouting (kits included)，supporting horizontal ±45° adjustment
	• Optional bracket accessory APM-110: Supports vertical ±90°, horizontal ±45° adjustment
	• Optional bracket accessory APM-100: Supports vertical ±45° , horizontal ±45° adjustment
	(Note: Optional bracket accessories need to be purchased separately)
