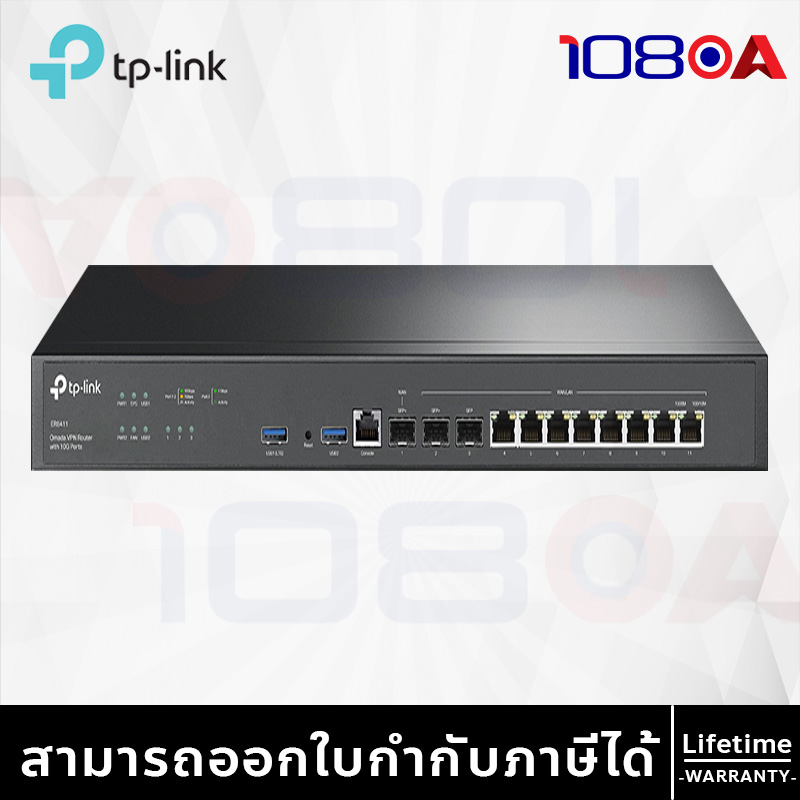

ER8411

14,600

รวมภาษี บาท

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Two 10GE SFP+ Ports: 1× WAN and 1× WAN/LAN 10GE SFP+ ports provide high-bandwidth aggregation connectivity.
Up to 10 WAN Ports: Fiber and RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband.
Highly Secure VPN: Enterprise-standard SSL/ IPSec / PPTP / L2TP VPN & OpenVPN / L2TP over IPSec VPN are ideal for use across multiple branches and for WFH.
Abundant Security Features: Powerful Firewall, DoS defense, IP/MAC/URL filtering, and IP-MAC Binding, and One-Click ALG Activation provide world-class security.

Description

Standards and Protocols	• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
	• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP, WireGuard VPN
Interface	• 2× 10GE SFP+ Ports (1 WAN, 1 WAN/LAN)
	• 1× 1GE SFP WAN/LAN Ports
	• 8× 1GE RJ45 WAN/LAN Ports
	• 1× RJ45 Console Ports
	• 2× USB Ports (Connecting 4G/3G Modem as WAN Backup)
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)
	EIA/TIA-568 100Ω STP (Max 100 m)
	• 100BASE-TX: UTP category 5, 5e cable (Max 100 m)
	EIA/TIA-568 100Ω STP (Max 100 m)
	• 1000BASE-T: UTP category 5e, 6 cable (Max 100 m)
Fan Quantity	2
Button	Reset Button
Power Supply	Redundant Dual Power Supplies (100–240 VAC, 50/60 Hz)
PoE Budget	–
Flash	4MB SPI NOR + 256 MB NAND
DRAM	4 GB DDR4
LED	PWR, SYS, WAN, LAN, USB, FAN
Dimensions ( W x D x H )	17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
Protection	4 kV surge protection
Enclosure	Steel
Mounting	Rack Mountable
Max. Power Consumption	• 26.36 W (with USB 3.0 connected)
	• 19.12 W (without USB 3.0 connected)
