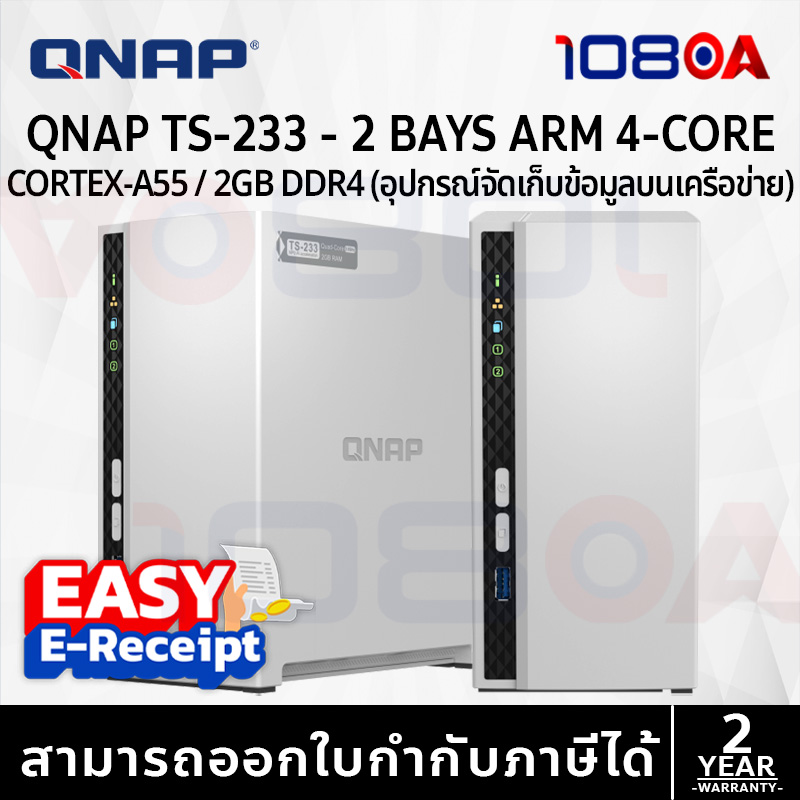

Qnap TS-233

CPU :  ARM 4-core Cortex-A55 2.0GHz processor
CPU Architecture :  64-bit ARM
Graphic Processors :  Mali-G52
System Memory :  2 GB on board (non-expandable)
*Note: Reserves some RAM for use as shared graphics memory.*
Maximum Memory :  2 GB on board (non-expandable)
Flash Memory :  4 GB (Dual boot OS protection)
Drive Bay :  2 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility :

• 3.5-inch SATA hard disk drives
• 2.5-inch SATA solid state drives

Hot-swappable :  √
Gigabit Ethernet Port (RJ45) :  1
USB 2.0 port :  2
USB 3.2 Gen 1 port :  1
Form Factor :  Tower
LED Indicators :  System Status, LAN, USB, HDD1~2
Buttons :  Power, Reset, USB Copy
Dimensions (HxWxD) :  186 × 91.7 × 157.6 mm
*Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)*
Weight (Net) :  1.69 kg
Weight (Gross) :  1.89 kg
Operating Temperature :  0 – 40 °C (32°F – 104°F)
Storage Temperature :  -20 – 70°C (-4°F – 158°F)
Relative Humidity :  5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit :  Minimum 48W adapter (12VDC), 100-240VAC
Power Consumption: Disk Standby Mode :  3.43W
Power Consumption: Operating Mode, Typical :  10.81 W  *Tested with drives fully populated.*
Fan :  1 x 80mm, 12VDC
System Warning :  Buzzer
Standard Warranty :  2
Max. Number of Concurrent Connections (CIFS) – with Max. Memory :  200
