Description

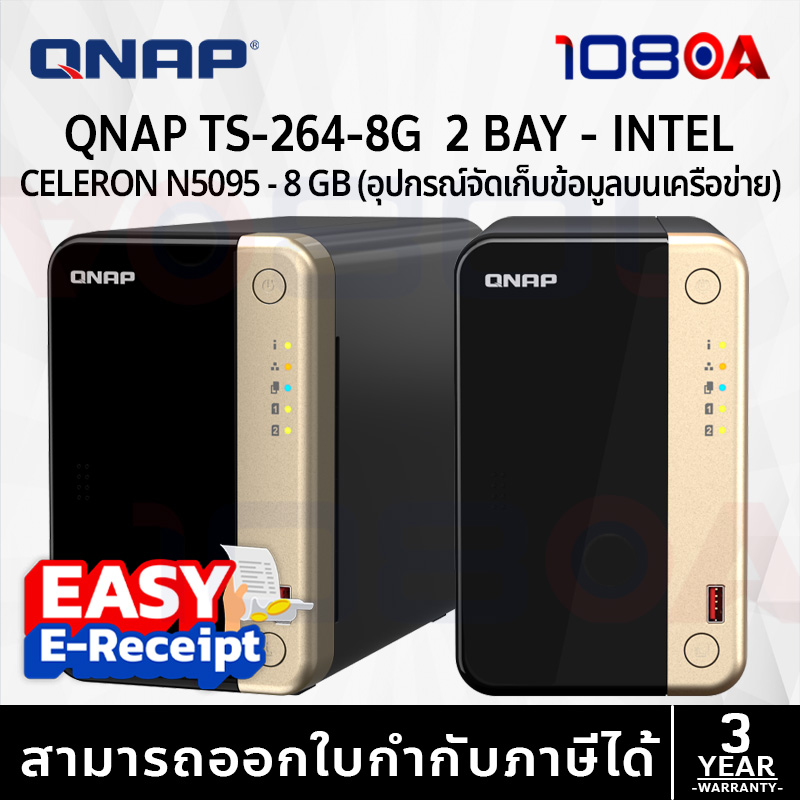

Qnap TS-264-8G

CPU :  Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz
CPU Architecture :  64-bit x86
Graphic Processors : Intel® UHD Graphics
System Memory :  8 GB SODIMM DDR4   *Since 2024/01*
Maximum Memory :  16 GB (2 x 8GB)
Memory Slot :  2 x SODIMM DDR4
Flash Memory :  4 GB (Dual boot OS protection)
Drive Bay :  2 x 3.5-inch SATA 6Gb/s
*The system is shipped without HDD.*
**For the HDD compatibility list, please visit https://www.qnap.com/compatibility/**
Drive Compatibility :

• 3.5-inch SATA hard disk drives
• 2.5-inch SATA solid state drives

Hot-swappable :  √ (Not supported M.2 SSD)
M.2 Slot :  2 x M.2 2280 PCIe Gen 3 x1
*If a heatsink is to be installed, it is recommended that the top heatsink dimensions be less than 68 x 20 x 10 mm (L x W x H)*
2.5 Gigabit Ethernet Port (2.5G/1G/100M) :  2 (2.5G/1G/100M/10M)
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) :  Optional via PCIe expansion card
10 Gigabit Ethernet Port :  Optional via PCIe expansion card
PCIe Slot : 1
Slot 1 :  PCIe Gen 3 x2
*Card dimensions for PCIe slot：190 x 68.9x 18.76 mm / 7.48 x 2.71 x 0.74 inches.*
USB 2.0 port :  2
USB 3.2 Gen 2 (10Gbps) port :  2x Type-A
Form Factor :  Tower
LED Indicators :  Power/Status, LAN, USB, HDD1-2
Buttons :  Power, Reset, USB Copy
Dimensions (HxWxD) :  165 × 105 × 226.5 mm
*Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)*
Weight (Net) :  1.55 kg
Weight (Gross) :  2.61 kg
Operating Temperature :  0 – 40 °C (32°F – 104°F)
Storage Temperature :  -20 – 70°C (-4°F – 158°F)
Relative Humidity :  5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit :  60W adapter, 100-240V
Power Consumption: Disk Standby Mode :  18.288W
Power Consumption: Operating Mode, Typical :  29.086 W  *Tested with drives fully populated.*
Fan :  1 x 70mm, 12VDC
System Warning :  Buzzer
Standard Warranty :  3
Max. Number of Concurrent Connections (CIFS) – with Max. Memory :  1500
