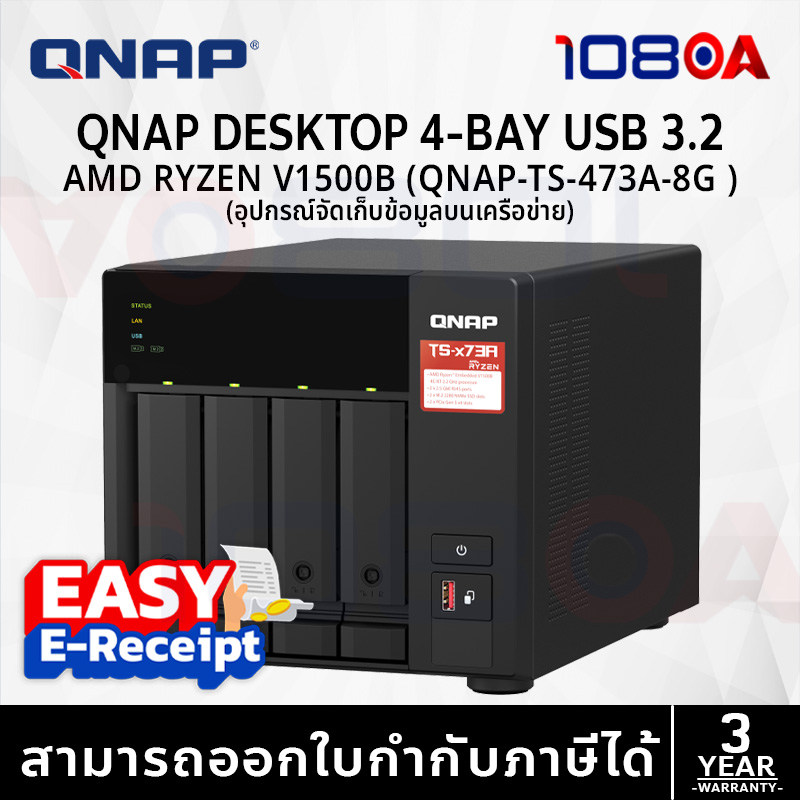

Qnap TS-473A-8G

CPU :  AMD Ryzen™ Embedded V1500B 4-core/8-thread 2.2 GHz processor
CPU Architecture :  64-bit x86
Graphic Processors : Optional via a PCIe adapter
System Memory :  8 GB SODIMM DDR4
Maximum Memory :  64 GB (2 x 32 GB)
Memory Slot :  2 x SODIMM DDR4
*Support ECC memory*
**For dual-DIMM configurations, you must use a pair of identical DDR4 modules.**
Flash Memory :  5 GB (Dual boot OS protection)
Drive Bay :  4 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility :

• 3.5-inch SATA hard disk drives
• 2.5-inch SATA solid state drives

Hot-swappable :  √
*The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots.*
M.2 Slot :  2 x M.2 2280 PCIe Gen3 x1 slots
*The M.2 SSD is not included as standard.*
**M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD.**
2.5 Gigabit Ethernet Port (2.5G/1G/100M) :  2 (2.5G/1G/100M)
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) :  Optional via a PCIe adapter
10 Gigabit Ethernet Port :  Optional via a PCIe adapter
PCIe Slot :  2
Slot 1: PCIe Gen 3 x4
Slot 2: PCIe Gen 3 x4
*Card dimensions for PCIe slot 1~Slot 2：200 x 68.9 x 18.76 mm / 7.87 x 2.71 x 0.74 inches.*
**Wider cards can be installed if the next PCIe slot will not be used.**
USB 3.2 Gen 2 (10Gbps) port :

• 3 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps
• 1 x Type-C USB 3.2 Gen 1 5V/1A 5Gbps

HDMI™ Output :  Optional via a PCIe adapter
Form Factor :  Tower
LED Indicators :  Status/Power, USB, LAN, Drive 1-4, M.2 SSD 1-2
Buttons :  Power, Reset, USB Auto Copy
Dimensions (HxWxD) :  180.2 × 199.3 × 279.6 mm
*Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)*
Weight (Net) :  5.54 kg
Weight (Gross) :  6.15 kg
Operating Temperature :  0 – 40 °C (32°F – 104°F)
Storage Temperature :  -20 – 70°C (-4°F – 158°F)
Relative Humidity :  5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit :  250W, 100-240V AC, 50-60Hz, 3.5A
Power Consumption: Disk Standby Mode :  19.576W
Power Consumption: Operating Mode, Typical :  29.792 W  *Tested with drives fully populated.*
Fan :

• System fan: 1 x 120mm
• CPU fan: 1 x 60mm

System Warning :  Buzzer
Standard Warranty :  3
Max. Number of Concurrent Connections (CIFS) – with Max. Memory :  2000
