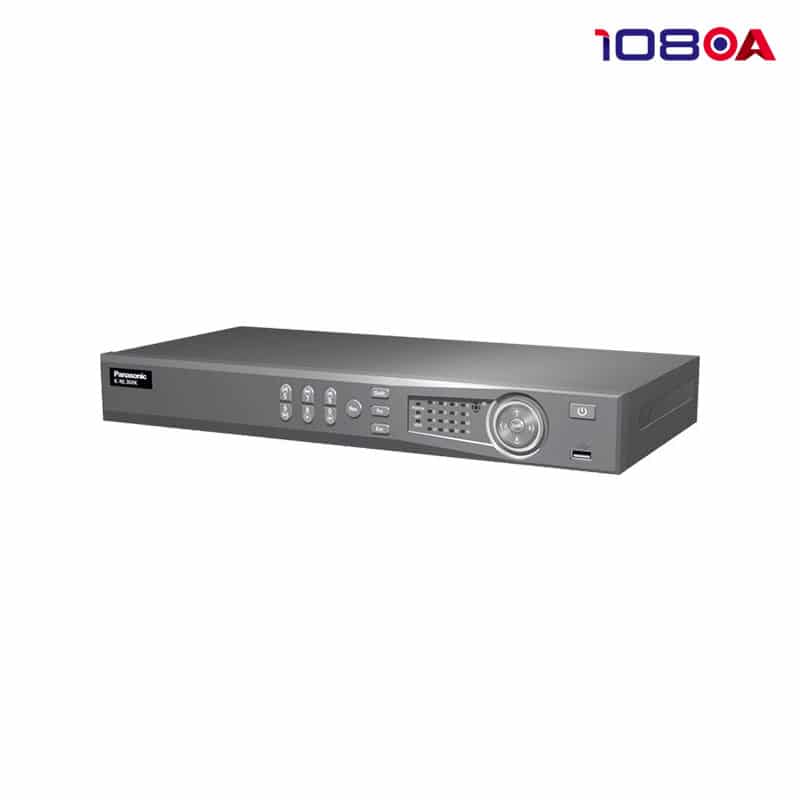

Panasonic รุ่น K-NL304K/G 4
23,590 รวมภาษี บาท
4 (K-NL304K) channel with 1080p realtime live view
H.264 / MJPEG dual codec decoding
Max 200 Mbps incoming bandwidth
HDMI / VGA / BNC (K-NL316K) simultaneous video output
4 / 8 / 16 channel synchronous realtime playback
Support 2 SATA HDDs up to 8 TB 2 USB (1 USB3.0) (K-NL304K / K-NL308K)
Support 4 SATA HDDs up to 16 TB 1 eSATA up to 16 TB 2 USB (1 USB3.0) (K-NL316K)
4 PoE (K-NL304K) 8 PoE (K-NL308K) 16 PoE (K-NL316K) ports
Multiple network monitoring : Web browser EMS* (E-Series Management Software) & Mobile-EMS*
Multi-Language : English / Thai / Vietnamese
EMS & Mobile-EMS do not support i-PRO series NVR
Panasonic Security Viewer is not supported
รับประกัน 3 ปี
Description
| Model | K-NL304K/G |
| Main Processor | Dual-core embedded processor |
| Operating System | Embedded Linux |
| Video Input | 4 channels (Only E-Series camera) |
| Video Output | 1 HDMI 1 VGA |
| Audio Input | 1channel Input (RCA) |
| Audio Output | 1channel Output (RCA) |
| Resolution | 1920 × 1080 1280 × 1024 1280 × 720 1024 × 768 |
| Compression | H.264 / MJPEG |
| Sync Playback | 1/4 |
| Network Ethernet | 1 RJ45 port (10 / 100 / 1000 Mbps) |
| Smart Phone | iPhone iPad Android |
| Storage Internal HDD | 2 SATA ports up to 8 TB |
| USB Interface | 2 ports (1 Rear USB3.0 1 Front USB2.0) |
| RS485 | 1 port For PTZ Control |
| Power Supply | DC12 V / 4 A (For main unit) DC48 V / 1.04 A (For PoE) |
| Power Consumption | NVR : 30 W (without HDD) PoE : Max 25.5 W for single port |
| Working Environment | -10°C ~ 55°C |
| Dimension(W×D×H) | 375 mm (W) × 278 mm (D) × 52 mm (H) |
| Weight | 2.0 kg (without HDD) |
