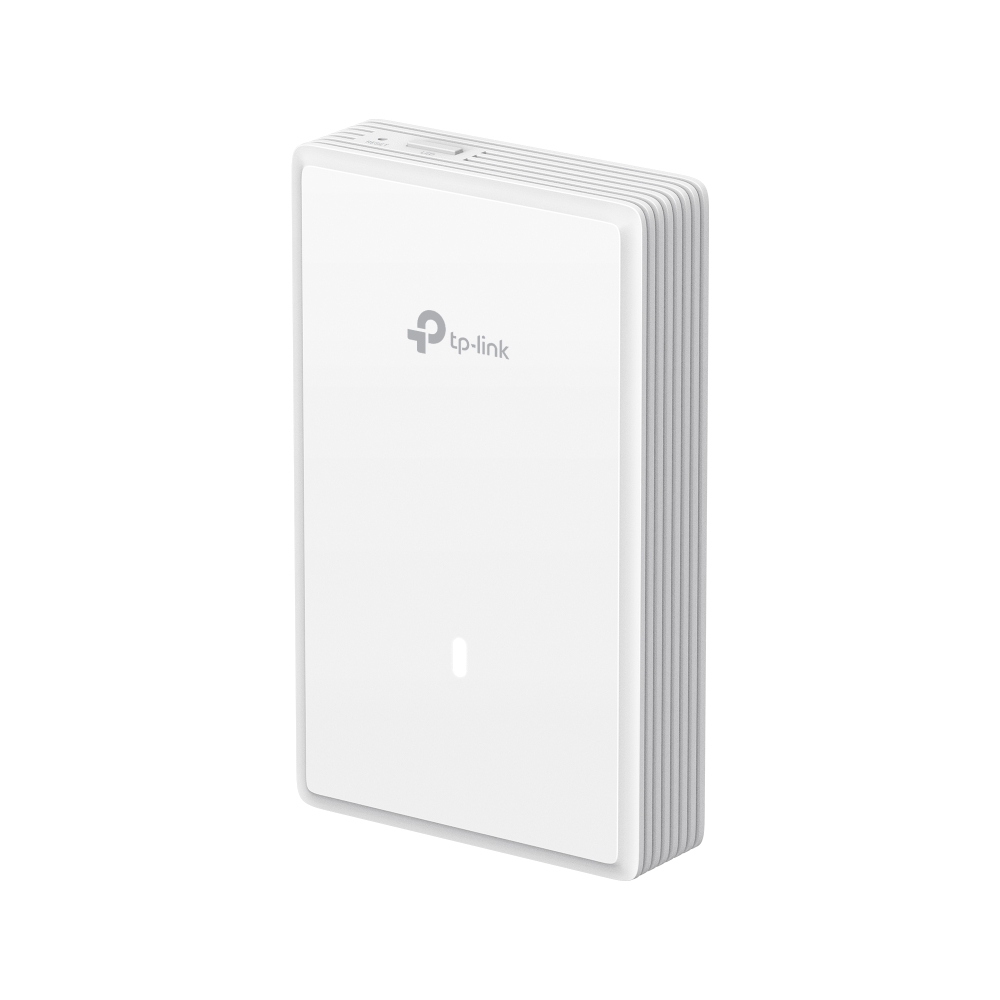

EAP725-Wall
Call
EAP725-Wall
- BE5000 Wi-Fi 7 (4324 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).
- 1× 2.5G PoE input port + 1× 2.5G pass-through port + 2× Gigabit RJ45 downlink ports.
- 240 MHz bandwidth enables many more simultaneous transmissions.
- Multi-RUs ensure the high performance of your network.
- Advanced Functions: Centralized management, Mesh, and Seamless Roaming.
Description
EAP725-Wall
| Interface | • Uplink: 1× 2.5G Ethernet Port |
| • Downlink: 1× 2.5G Ethernet Port + 2× Gigabit Ethernet Ports | |
| (The 2.5G port supports PoE pass-through. The PoE pass-through feature requires 802.3at/bt input. If the power consumption of the AP’s downstream device exceeds 7W, the AP needs an 802.3bt input.) |
|
| Physical Security Lock | No |
| Button | Reset, LED |
| Power Supply | 802.3at/bt PoE |
| PoE Out | PoE Passthrough (Pins 1,2-; 3,6+) |
| The PoE pass-through feature requires 802.3at/bt input. If the power consumption of the AP’s downstream device exceeds 7W, the AP needs an 802.3bt input. |
|
| Max. Power Consumption | • 802.3bt: 17W (PoE Out support 15.4W) |
| • 802.3at: 17W (PoE Out support 7W) | |
| Dimensions ( W x D x H ) | 143 × 86 × 40 mm (5.6 × 3.4 × 1.6 in) |
| Antenna | 4× Internal Antennas |
| • 2.4 GHz: 2× 4 dBi | |
| • 5 GHz: 2× 5 dBi | |
| Bluetooth | V5.2 |
| Mounting | Wall Mounting (Kits included) |
-
