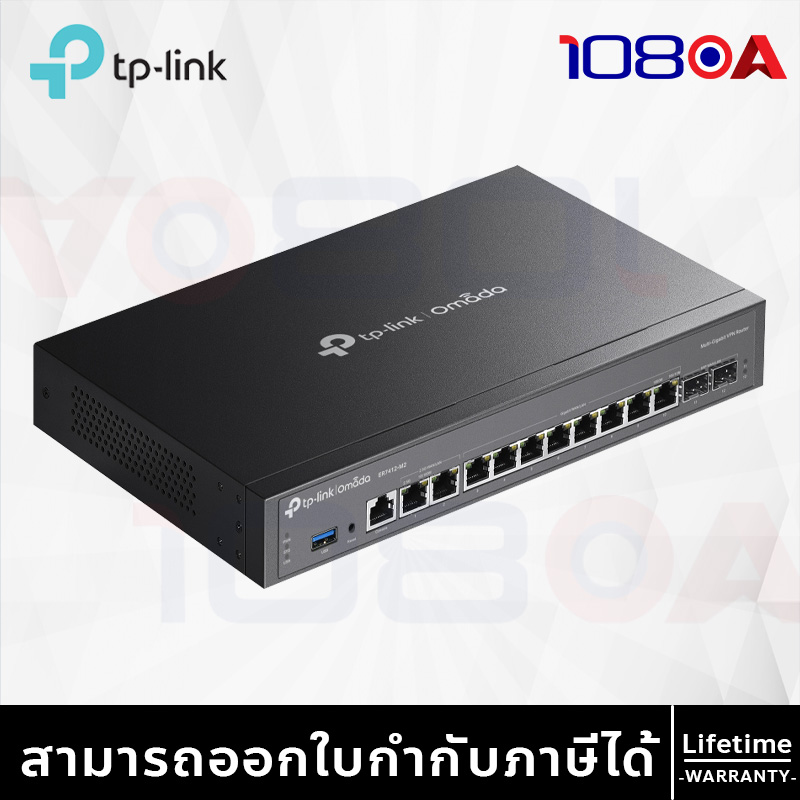

ER7412-M2
5,900 รวมภาษี บาท
ER7412-M2
- Quad-core @2.0GHz CPU
- 2× 2.5G RJ45 WAN/LAN ports
- 10× Gigabit WAN/LAN Ports (2× SFP, 8× RJ45)
- 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)
- Load Balancing on up to 11 WAN ports increases the utilization rate of multi-line broadband
- High-security SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
- Centralized cloud management via the web or the Omada app
- DoS/DDoS protection, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security
Description
ER7412-M2
| Standards and Protocols | • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE802.1q |
| • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP | |
| Interface | • 1× 2.5G RJ45 WAN/LAN Port |
| • 1× 2.5G RJ45 WAN/LAN Port | |
| • 2× Gigabit SFP WAN/LAN Ports | |
| • 8× Gigabit RJ45 WAN/LAN Ports | |
| • 1× RJ45 Console Port | |
| • 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle) | |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) |
| • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) | |
| • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) | |
| • 2500BASE-T: UTP category 5e, 6 cable (Max 100 m) | |
| Button | Reset Button |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Flash | 128MB NAND |
| DRAM | 1 GB DDR4 |
| Dimensions ( W x D x H ) | 11.6×7.1×1.7 in (294×180×44 mm) |
| Protection | 4 kV surge protection |
| Enclosure | Steel |
| Mounting | • Desktop |
| • Rackmountable | |
| Max. Power Consumption | 18.5W (With USB 3.0 connected) |
-
