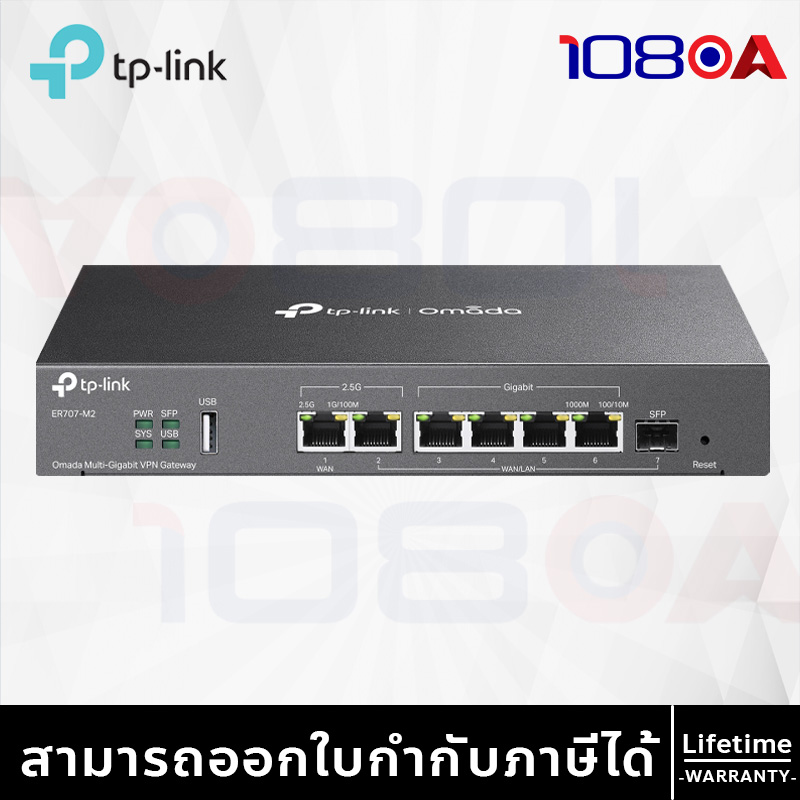

ER707-M2
4,800 รวมภาษี บาท
ER707-M2
- 2× 2.5 Gbps RJ45 ports (1× WAN, 1× WAN/LAN)
- 5× Gigabit WAN/LAN ports (1× SFP, 4× RJ45)
- Load Balancing on up to 6 WAN ports‡ increases the utilization rate of multi-line broadband
- 1× USB port (Supports USB storage, and LTE backup with LTE dongle)
- High-security SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
- Centralized cloud management via the web or the Omada app
- DoS/DDoS protection, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security
- Rackmount, Desktop, or Wall Mount
Description
ER707-M2
| Standards and Protocols | • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q， IEEE802.3bz |
| • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP, WireGuard VPN | |
| Interface | • 1× 2.5G RJ45 WAN Port |
| • 1× 2.5G RJ45 WAN/LAN Port | |
| • 1× Gigabit SFP WAN/LAN Port | |
| • 4× Gigabit RJ45 WAN/LAN Ports | |
| • 1× USB 2.0 Port (Supports USB storage, and LTE backup with LTE dongle) | |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) |
| • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) | |
| • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) | |
| • 2500BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) | |
| Fan Quantity | Fanless |
| Button | Reset Button |
| Power Supply | 12V/1.5A Adapter |
| PoE Budget | – |
| Flash | 128MB NAND |
| DRAM | 1 GB DDR4 |
| LED | PWR, SYS, SFP, USB, WAN (Speed, Link/Act), LAN (Speed, Link/Act) |
| Dimensions ( W x D x H ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) |
| Protection | 4 kV surge protection |
| Enclosure | Steel |
| Mounting | Rackmout, Desktop, or Wall Mount |
| Max. Power Consumption | 14.2 W (with USB2.0 connected) |
| 7.1 W (without USB2.0 connected) |
-
